客户：广博电脑维修

日期：2020.8.22

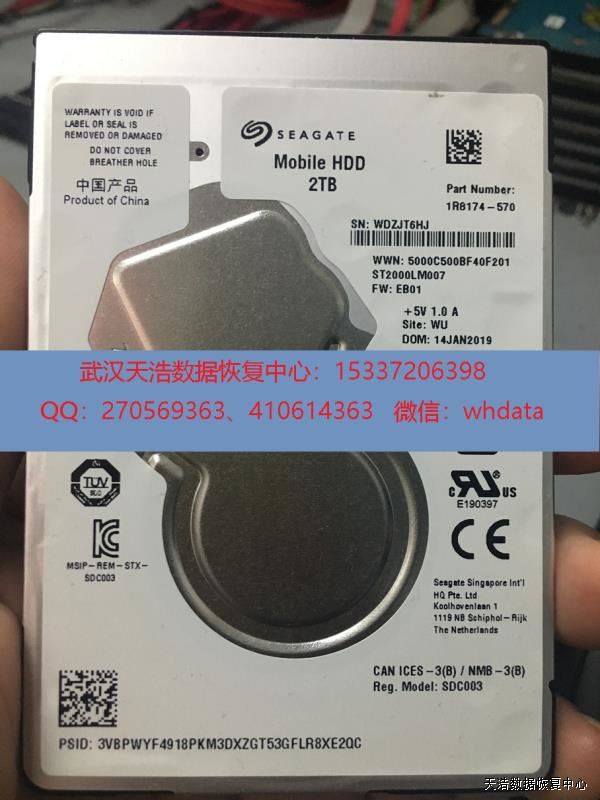

硬盘型号：ST2000LM007-1R8174   SN：WDZJT6HJ   FW：EB01   电路板号：100809471

故障现象：希捷2T原装移动硬盘，通电不敲盘不认盘。

解决方案：收到硬盘后，我们接到数据恢复工具PC-3000 UDMA Express上，通电，终端信息如下 ：

PrgF
(P)SATAReset

RAWOFF
PASS
EDACValue=00000000FFFFF111
EDACValue=00000000FFFFF111
EDACValue=00000000FFFFF111
EDACValue=00000000FFFFF111
SIMFileFD=FC3B3348ErrorCode=44090082DiscLBA=0000000000006498Duration=00000821ms
EDACValue=00000000FFFFF111
EDACValue=00000000FFFFF111
EDACValue=00000000FFFFF111
EDACValue=00000000FFFFF111
SIMFileFD=FC3B3348ErrorCode=44090082DiscLBA=0000000000013E98Duration=00000820ms
 MCMT table is corrupted
 MCMT table is corrupted
 MCMT table is corrupted
 MCMT table is corrupted
 MCMT table is corrupted
 MCMT table is corrupted
 MCMT table is corrupted
 MCMT table is corrupted
 MCMT table is corrupted
6GbMaxSpeedloweredto3GbforIntelbug
SendStatus:COMRESETseen
CSpd=3Gbps

硬盘就绪后，读ID就报DWF错误，这是希捷这种盘的常见故障，修复固件问题后，断电通电硬盘正常认盘，镜像，成功恢复硬盘内几乎全部数据！
